Hurricane multiverse (non-neuroimaging)

The Comet toolbox is developed primarily for fMRI brain network analyses. However, we here showcases how the versatile multiverse workflow can also be applied outside of neuroimaging.

This script is a re-implementation og the famous “Female hurricanes are deadlier than male hurricanes” multiverse analysis originally presented in Simonsohn et al. (2020). Their study revisited Jung et al. (2014), who reported that hurricanes with more feminine names caused more fatalities. Simonsohn and colleagues systematically explored how robust this conclusion is across a large range of reasonable analytic specifications.

The Comet toolbox provides a Python-native multiverse framework that allows the entire hurricane multiverse analysis to be expressed with two simple objects:

A dictionary of forking paths
A single analysis template function containing placeholders for all decisions

Existing examples (R implementations) of this example can be found here:

multiverse package: https://cran.r-project.org/web/packages/multiverse/vignettes/example-hurricane.html
mverse package: https://mverseanalysis.github.io/mverse/index.html

[1]:

from comet.multiverse import Multiverse

forking_paths = {
    "death_outliers":  [2, 1, 0],    # Drop n hurricanes with the most deaths
    "damage_outliers": [3, 2, 1, 0], # Drop n hurricanes with the most damage

    "femininity_rating": ["fem_likert", "fem_binary"], # Femininity rating (11-point likert or binary)
    "damage_functional": ["ln", "linear"],             # Damage functional (ln or no transformation)

    "effect_type":  ["femininity * damages",
                     "femininity * damages + femininity * zpressure",
                     "femininity * damages + femininity * zwind",
                     "femininity * damages + femininity * zcat",
                     "femininity * damages + femininity * z3",
                     "femininity + damages + z3"],                       # Interactions or main effect only)
    "year_interaction":  ["", " + post1979:damages", " + year:damages"], # Interactions with year
    "model":             ["log_linear", "neg_binomial"]                  # Model (negative binomial or log-linear)
}

def analysis_template():
    import comet
    import numpy as np
    import statsmodels.api as sm
    import statsmodels.formula.api as smf

    # Load hurricane data
    df = comet.utils.load_example("hurricane")

    # Create derived predictors
    df["post1979"] = (df["elapsed_years"] > 1979).astype(int)
    df["zcat"] = (df["category"] - df["category"].mean()) / df["category"].std()
    df["zpressure"] = -((df["pressure"] - df["pressure"].mean()) / df["pressure"].std())
    df["zwind"] = (df["wind"] - df["wind"].mean()) / df["wind"].std()
    df["z3"] = (df["zpressure"] + df["zcat"] + df["zwind"]) / 3.0

    # Decisions 1 & 2: Exclude outliers
    top_deaths = df["deaths"].nlargest({{death_outliers}}).unique()
    top_damage = df["damages"].nlargest({{damage_outliers}}).unique()
    df = df[~df["deaths"].isin(top_deaths) & ~df["damages"].isin(top_damage)]

    # Decision 2: Choose femininity rating
    df["femininity"] = df[{{femininity_rating}}]

    # Decision 3: Transform damage variable
    if {{damage_functional}} == "ln":
        df["damages"] = np.log(df["damages"])

    # Decision 4 & 5: Effect type & account for year
    formula = "deaths ~ " + {{effect_type}} + {{year_interaction}}

    # Decision 6: Model type and fitting
    if {{model}} == "log_linear":
        df["deaths"] = np.log(df["deaths"] + 1)
        fit = smf.ols(formula, data=df).fit()
    else:
        fit = smf.glm(formula, data=df, family=sm.families.NegativeBinomial(alpha=1)).fit()

    # Results: Set femininity for male vs female and predict deaths at the sample means
    if {{femininity_rating}} == "fem_likert":
        fem_male = df["femininity"][df["fem_binary"] == 0].mean()
        fem_fem = df["femininity"][df["fem_binary"] == 1].mean()
    else:
        fem_male = 0
        fem_fem = 1

    base = df.mean(numeric_only=True).to_frame().T

    base_male = base.copy()
    base_male["femininity"] = fem_male

    base_fem = base.copy()
    base_fem["femininity"] = fem_fem

    if {{model}} == "log_linear":
        # Predict and back-transform (slightly simplified)
        pred_m = np.exp(fit.predict(base_male)) - 1
        pred_f = np.exp(fit.predict(base_fem)) - 1
    else:
        pred_m = fit.predict(base_male)
        pred_f = fit.predict(base_fem)

    # Get the additional deaths as multiverse outcome measure
    extra_deaths = pred_f.values - pred_m.values
    # The p-values mix interaction with main effect only so its a bit hacky, but good enough for illustration
    p_val = fit.pvalues["femininity:damages"] if "femininity:damages" in fit.pvalues.index else fit.pvalues["femininity"]

    comet.utils.save_universe_results({"extra_deaths": extra_deaths, "p_val": p_val})

[2]:

mverse = Multiverse(name="example_mv_hurricane")
mverse.create(analysis_template, forking_paths)
mverse.summary()

	Universe	Decision 1	Value 1	Decision 2	Value 2	Decision 3	Value 3	Decision 4	Value 4	Decision 5	Value 5	Decision 6	Value 6	Decision 7	Value 7
0	Universe_1	death_outliers	2	damage_outliers	3	femininity_rating	fem_likert	damage_functional	ln	effect_type	femininity * damages	year_interaction	NaN	model	log_linear
1	Universe_2	death_outliers	2	damage_outliers	3	femininity_rating	fem_likert	damage_functional	ln	effect_type	femininity * damages	year_interaction	NaN	model	neg_binomial
2	Universe_3	death_outliers	2	damage_outliers	3	femininity_rating	fem_likert	damage_functional	ln	effect_type	femininity * damages	year_interaction	+ post1979:damages	model	log_linear
3	Universe_4	death_outliers	2	damage_outliers	3	femininity_rating	fem_likert	damage_functional	ln	effect_type	femininity * damages	year_interaction	+ post1979:damages	model	neg_binomial
4	Universe_5	death_outliers	2	damage_outliers	3	femininity_rating	fem_likert	damage_functional	ln	effect_type	femininity * damages	year_interaction	+ year:damages	model	log_linear
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
1723	Universe_1724	death_outliers	0	damage_outliers	0	femininity_rating	fem_binary	damage_functional	linear	effect_type	femininity + damages + z3	year_interaction	NaN	model	neg_binomial
1724	Universe_1725	death_outliers	0	damage_outliers	0	femininity_rating	fem_binary	damage_functional	linear	effect_type	femininity + damages + z3	year_interaction	+ post1979:damages	model	log_linear
1725	Universe_1726	death_outliers	0	damage_outliers	0	femininity_rating	fem_binary	damage_functional	linear	effect_type	femininity + damages + z3	year_interaction	+ post1979:damages	model	neg_binomial
1726	Universe_1727	death_outliers	0	damage_outliers	0	femininity_rating	fem_binary	damage_functional	linear	effect_type	femininity + damages + z3	year_interaction	+ year:damages	model	log_linear
1727	Universe_1728	death_outliers	0	damage_outliers	0	femininity_rating	fem_binary	damage_functional	linear	effect_type	femininity + damages + z3	year_interaction	+ year:damages	model	neg_binomial

1728 rows × 15 columns

[3]:

mverse.run(parallel=16)

Starting multiverse analysis for all universes...

The multiverse analysis completed without any errors.

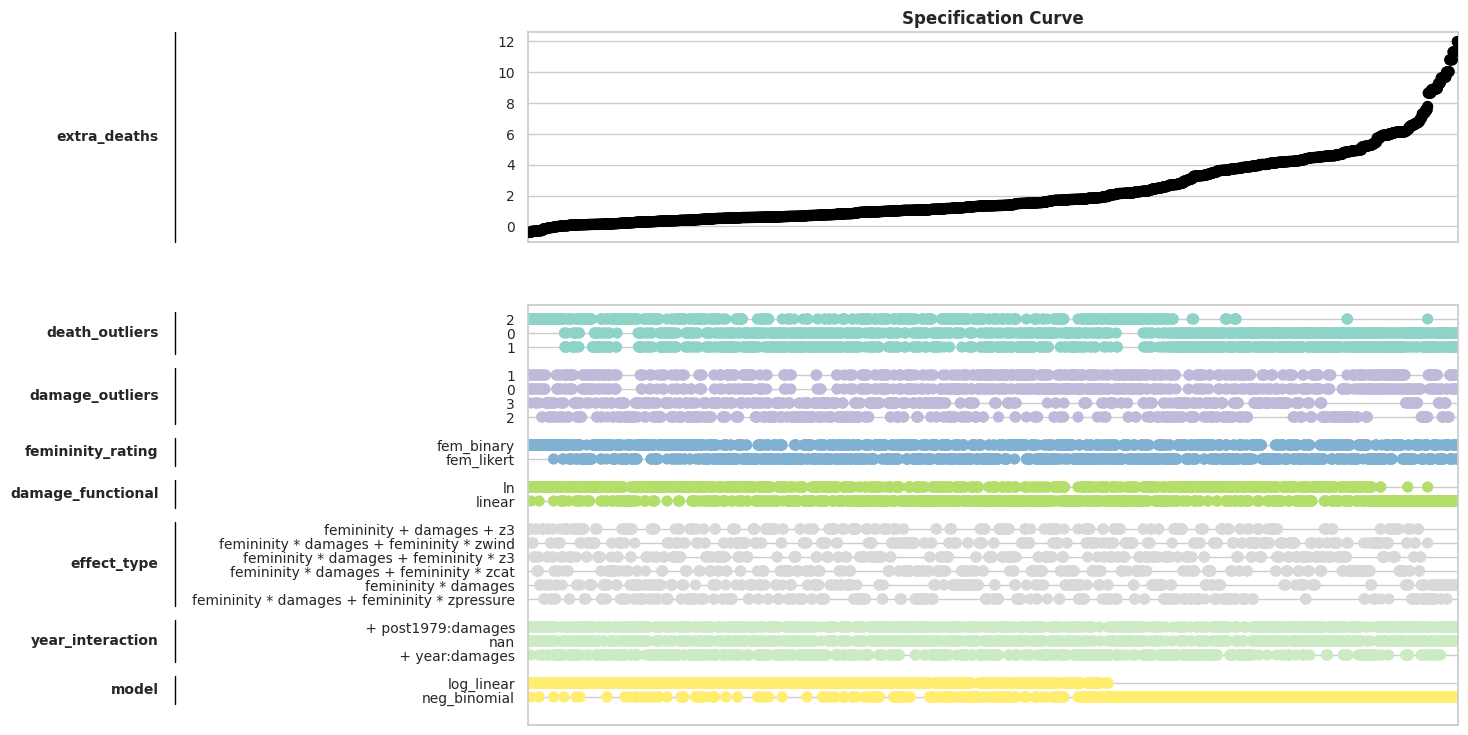

We can then plot the specification curve:

[4]:

mverse.specification_curve("extra_deaths", figsize=(12,9), height_ratio=(1,2), line_pad=0.05)

../../_images/sections_notebooks_example_mv_hurricane_5_0.png

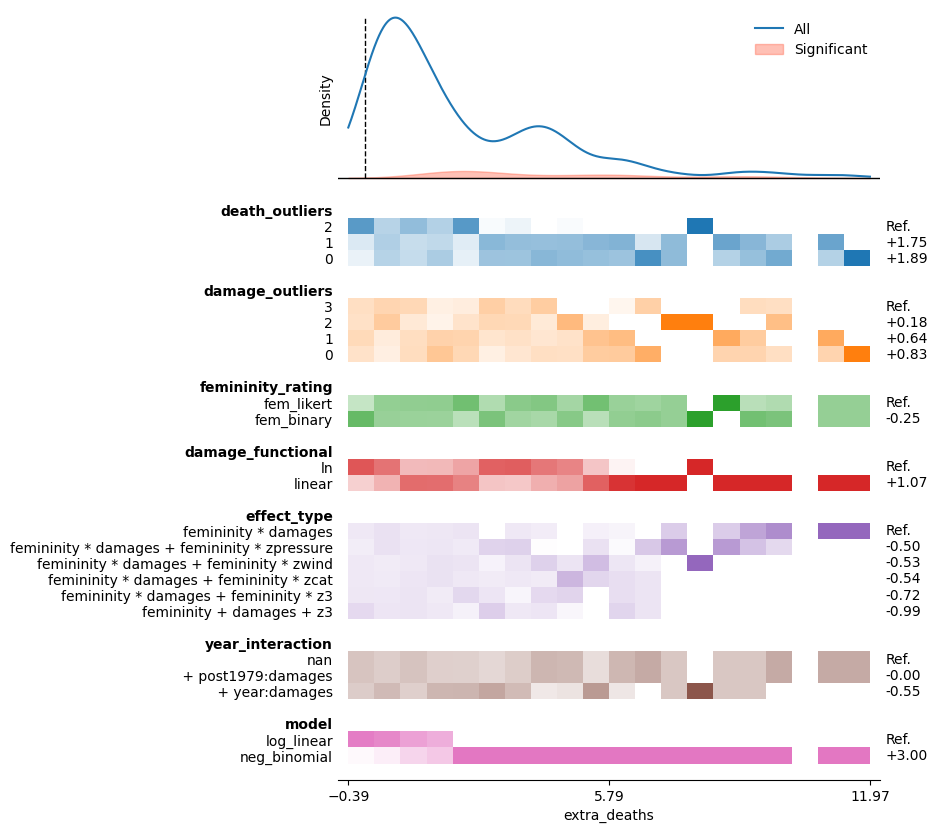

However, for large multiverses this type of visualisation can become difficult to interpret. A better alternative is a multiverse plot, which visualises the results as a density function and groups the specifications into bins.

Here it becomes easily visible how most effects are close to 0 and not significant:

[5]:

mverse.multiverse_plot(measure="extra_deaths", n_bins=20, sig_col="p_val", baseline=0, figsize=(7,10))

../../_images/sections_notebooks_example_mv_hurricane_7_0.png
